ab 5,09 € *

Inhalt: 1

inkl. MwSt. zzgl. Versandkosten

Artikel-Nr.: 406111108

Loser Flansch in schwarzem Stahl (St 37/S235) Norm DIN 2642 PN10... mehr

Menü schließen

Produktinformation

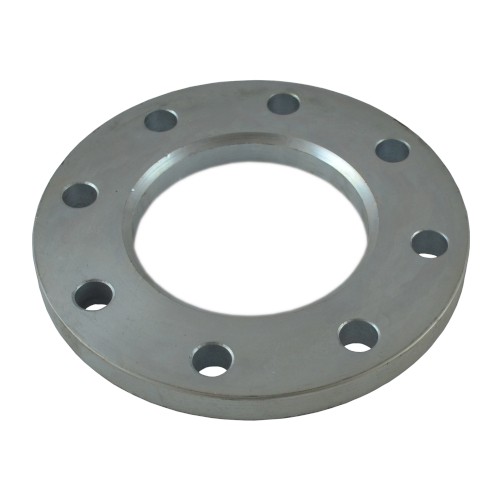

DIN 2642, St 37/S235 Loser Flansch Typ 02

Loser Flansch in schwarzem Stahl (St 37/S235)
Norm DIN 2642

**PN10**
DN	Rohr	D	K	L	Anzahl Löcher	Größe	B2	C1	Gewicht in KG
15	21,3	95,0	65,0	14,0	4,0	M12	24	14	0,689
20	26,9	105,0	75,0	14,0	4,0	M12	30	14	0,806
25	33,7	115,0	85,0	14,0	4,0	M12	36	16	1,110
32	42,4	140,0	100,0	18,0	4,0	M16	46	16	1,640
40	48,3	150,0	110,0	18,0	4,0	M16	54	16	1,860
50	60,3	165,0	125,0	18,0	4,0	M16	65	16	2,200
65	76,1	185,0	145,0	18,0	4,0	M16	81	16	2,620
80	88,9	200,0	160,0	18,0	8,0	M16	94	18	3,320
100	108,0	220,0	180,0	18,0	8,0	M16	113	18	3,670
100	114,3	220,0	180,0	18,0	8,0	M16	119	18	3,670
125	133,0	250,0	210,0	18,0	8,0	M16	138	18	4,540
125	139,7	250,0	210,0	18,0	8,0	M16	145	18	4,540
150	159,0	285,0	240,0	18,0	8,0	M20	164	18	5,600
150	168,3	285,0	240,0	22,0	8,0	M20	173	18	5,600
200	219,1	340,0	295,0	22,0	8,0	M20	225	20	7,460
250	273,0	395,0	350,0	22,0	12,0	M20	279	22	10,300
300	323,9	445,0	400,0	22,0	12,0	M20	329	26	14,000
350	355,6	505,0	460,0	22,0	16,0	M20	374	28	18,500
350	368,0	505,0	460,0	22,0	16,0	M20	362	28	18,500
400	406,4	565,0	515,0	26,0	16,0	M24	426	32	25,000

**PN25**
DN	Rohr	D	K	L	Anzahl Löcher	Größe	B2	C1	Gewicht in KG
200	219,1	360,0	310,0	26,0	12,0	M24	225	26	11,700
250	273,0	425,0	370,0	30,0	12,0	M27	279	30	17,900
300	323,9	485,0	430,0	30,0	16,0	M27	329	34	24,700
350	355,6	555,0	490,0	33,0	16,0	M30	374	38	35,600
400	406,4	620,0	550,0	36,0	16,0	M33	426	42	47,500

**PN40**
DN	Rohr	D	K	L	Anzahl Löcher	Größe	B2	C1	Gewicht in KG
15	21,3	95,0	65,0	14,0	4,0	M12	24	16	0,773
20	26,9	105,0	75,0	14,0	4,0	M12	30	16	0,934
25	33,7	115,0	85,0	14,0	4,0	M12	36	18	1,260
32	42,4	140,0	100,0	18,0	4,0	M16	46	18	1,850
40	48,3	150,0	110,0	18,0	4,0	M16	54	18	2,100
50	60,3	165,0	125,0	18,0	4,0	M16	65	20	2,750
65	76,1	185,0	145,0	18,0	8,0	M16	81	20	3,110
80	88,9	200,0	160,0	18,0	8,0	M16	94	22	3,880
100	114,3	235,0	190,0	22,0	8,0	M20	119	22	5,230
125	139,7	270,0	220,0	26,0	8,0	M24	145	24	7,230
150	168,3	300,0	250,0	26,0	8,0	M24	173	24	8,600
200	219,1	375,0	320,0	30,0	12,0	M27	225	30	15,200
250	273,0	450,0	385,0	33,0	12,0	M30	279	36	25,700
300	323,9	515,0	450,0	33,0	16,0	M30	329	40	33,500
350	355,6	580,0	510,0	36,0	16,0	M33	374	46	50,200
400	406,4	660,0	585,0	39,0	16,0	M6	426	50	71,200
